Scale R/C Landing Gear Systems

AVAILABLE NOW!!! Saab Viggen landing gear system for Custom Wings kit !!!AVAILABLE NOW

...

Manufacturer of Scale Landing Gears for RC Airplanes

Who are We

Welcome to the RcCrafters website. We manufacture scale landing gear systems for RC jets and non-jets. Our designs are scale enough for static competition and durable for flight use. Each set is custom tailored to the scale and weight of the aircraft.

History

Building landing gear systems for RC airplanes has been a family affair since 1995. All of the parts machining and finishing has been done in house and never been outsourced. The website production and maintenance is also performed by an IT specialist in the family.

How Do We Do It

All designs are scaled from photos of the "real" full size aircraft or factory blueprints. After scaling them down to the desired size, the gear is then drawn to scale in CAD. From there, the CAD drawings serve as the blueprints to the machining process. All the steps are completed in house on our mill and lathes. After trial assembly is completed, the gear is broken down and all pieces are bead blasted. Final finish is left to the consumer.


Jets

...
<Hover over image to enlarge>

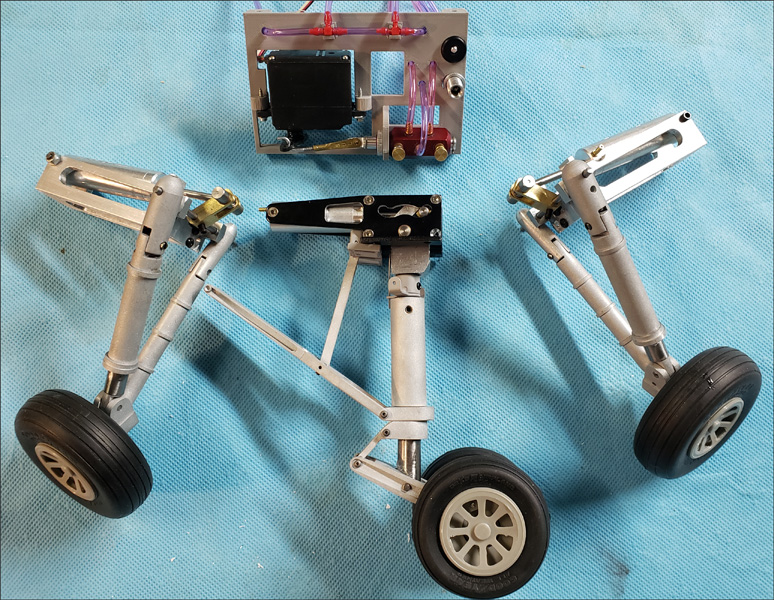

A-7 Corsair

  • 1/8th and 1/10th scale
  • 3 gear strut system with main actuators(pneumatic or electric)
  • Customer supplied retract or Robart retract optional
  • Customer supplied wheels or Robart wheels optional
  • Email rccrafters@aol.com for details and pricing
...
<Hover over image to enlarge>

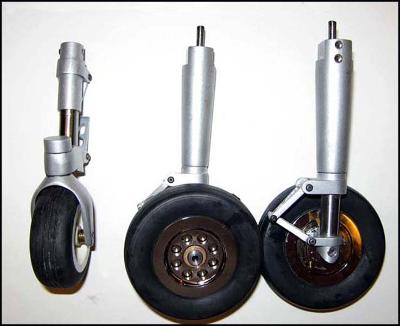

F9F Panther/Cougar

  • 1/6th and 1/9th scale
  • Originally designed for:
  • 1/9th JHH Panther/Cougar
  • 1/6th Ziroli Panther
  • 1/6th Palmer Cougar
  • Customer supplies wheels and retracts
  • Email rccrafters@aol.com for details and pricing
...
<Hover over image to enlarge>

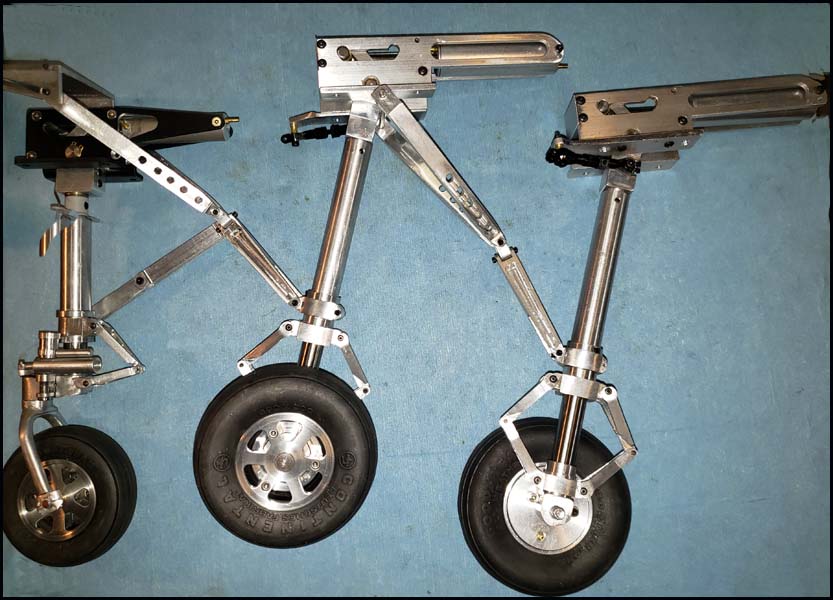

F4D-Skyray

  • 1/7th scale
  • Retracts, electric or pneumatic, included
  • Robart wheels and brakes are optional
  • Email rccrafters@aol.com for details and pricing
...
<Hover over image to enlarge>

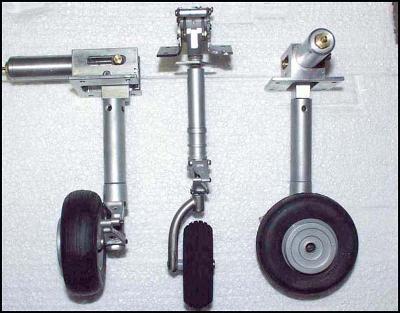

F-86

  • 1/10th scale
  • Main and Nose gear set
  • Originally designed for JHH
  • Customer supplied wheels and retracts
  • Email rccrafters@aol.com for details and pricing
...
<Hover over image to enlarge>

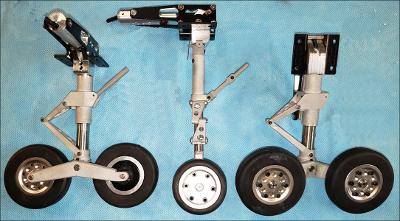

Saab Viggen

  • 1/10th scale
  • Electric or Pnuematic retracts are optional
  • Customer supplied wheels
  • Email rccrafters@aol.com for details and pricing
...
<Hover over image to enlarge>

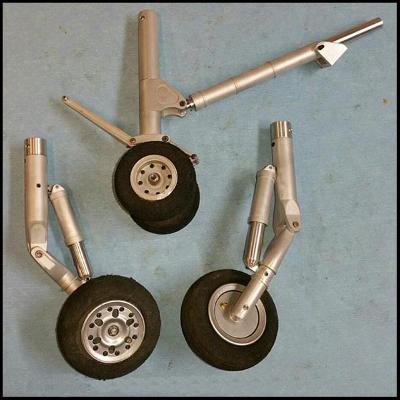

F18

  • 1/7th, 1/8th, 1/9th and 1/10th scale
  • 3 gear set
  • Originally designed for large and small Yellow, Byron and DCU models
  • Rotary joint on the mains to allow complex angle mounting to the retract
  • Customer supplied wheels, brakes and retracts
  • Email rccrafters@aol.com for details and pricing
...
<Hover over image to enlarge>

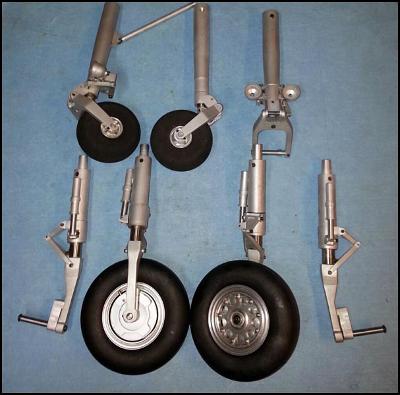

Mirage

  • 1/6th,1/7th and 1/9th scale
  • 1/9th designed for JHH model
  • 1/6 and 7th is custom scale project
  • Compatible with Byron model
  • Nose gear available in super scale version
  • Customer supplied wheels and retracts
  • Email rccrafters@aol.com for details and pricing
...
<Hover over image to enlarge>

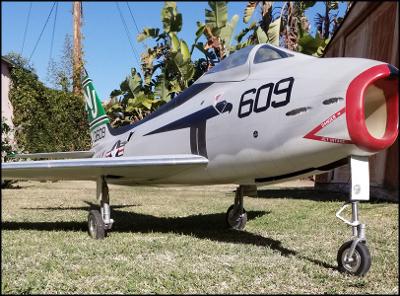

FJ4-Fury

  • 1/5th scale
  • 3 gear strut system with special low profile nose retract
  • Pneumatic or electric retracts
  • Robart cylinders and electric actuators
  • Customer supplied wheels
  • Email rccrafters@aol.com for details and pricing
...
<Hover over and Click on to enlarge>

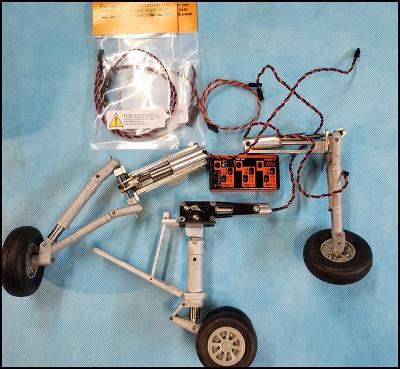

Kiero Viking

  • 3 gear set
  • Can be supplied with electric or pnuematic retracts
  • The actuators on the mains are Robart units
  • The nose retract is a Robart unit
  • The Robart wheels can be supplied as an option
  • Email rccrafters@aol.com for details and pricing
...
<Hover over image to enlarge>

F4

  • 1/8th and 1/10th scale
  • 3 gear set
  • Originally designed for Jet Hangar Hobbies and Jet Model Products models
  • Customer supplied wheels and retracts
  • Email rccrafters@aol.com for details and pricing
...
<Hover over image to enlarge>

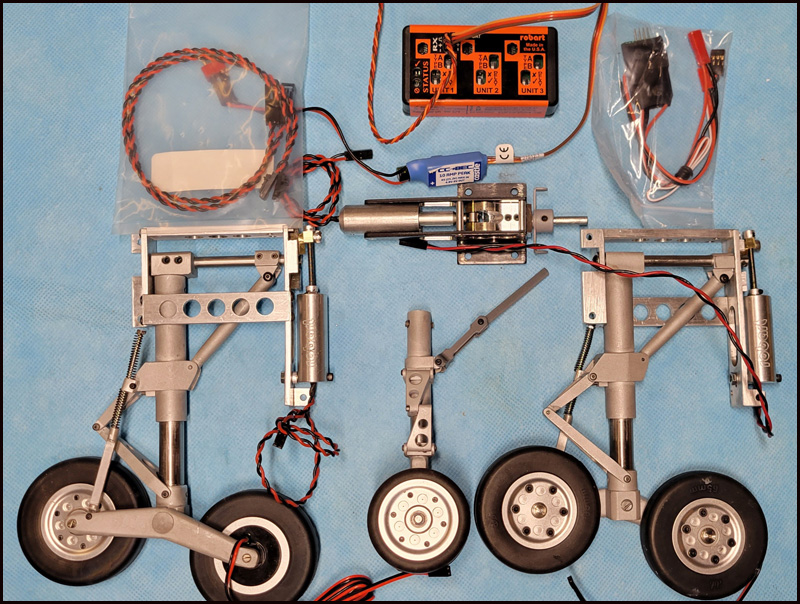

Custom Wings Saab Viggen

  • Main and nose scale struts
  • Low profile main retract mechanism using Robart electric actuator
  • JP Hobby wheels with brakes on mains and JP Hobby wheels on nose gear
  • Robart nose electric retract
  • Email rccrafters@aol.com for details and pricing

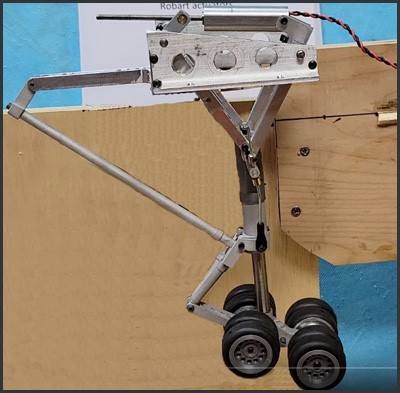

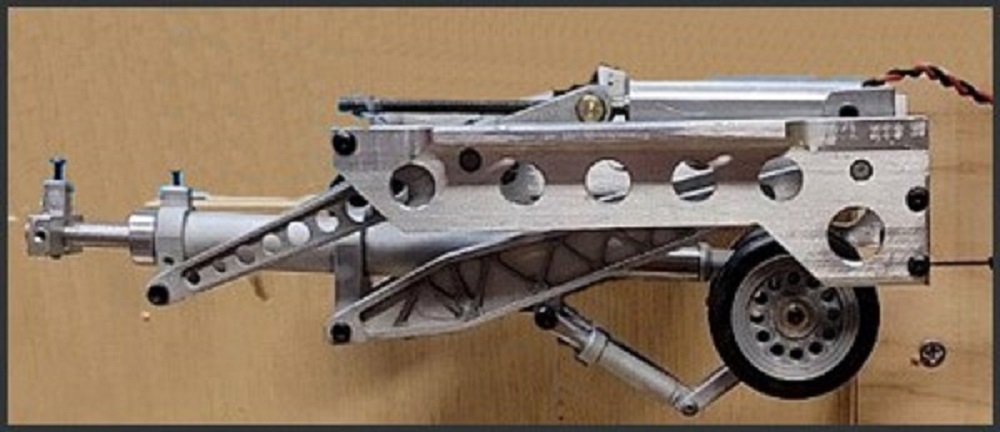

B58 Hustler

  • 1/12th scale
  • 3 gear strut system with electric actuators
  • For Dorian Anderson designed JHH model
  • Complete system utilizing Robart electronics
  • Available with the JHH model B-58 model package
  • Email rccrafters@aol.com for details and pricing
...
<Hover over image to enlarge>
...
<Hover over image to enlarge>
...
<Hover over image to enlarge>

Non-Jets

...
<Hover over image to enlarge>

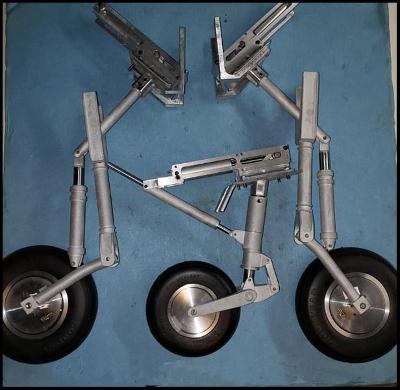

Palmer OV10A

  • 1/5th scale
  • Developed with Dan Palmer for his super scale model
  • Available as a system including Rccrafters special retracts retract mounts
  • Can be supplied with electric or pnuematic retracts
  • The system can be ordered with Robart wheels and brakes
  • Email rccrafters@aol.com for details and pricing

Retracts

...
<Hover over image to enlarge>

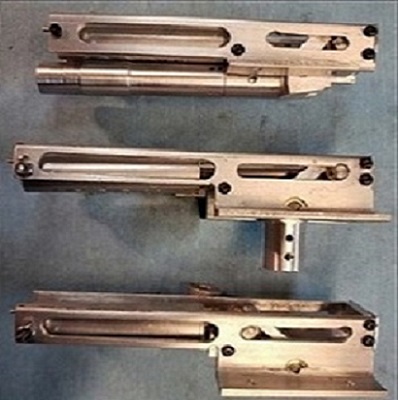

Custom Retracts

  • 70 to 110 Degree Rotating Option
  • Robart air or Electric Actuators
  • Email rccrafters@aol.com for details and pricing

Videos

1/7th Skyray Main Electric Retract

...

1/10th A7 and Viking Electric Main Gear

...

1/5th Palmer Bronco Main Gear

...

1/8th A7 Main Gear

...

1/7th Skyray Main Pneumatic Retract

...

1/5th F4J Fury Nose Gear Operation

...

Saab Viggen

...

B58 Main Gear Retract

...

B58 Nose Gear Retract

...

Saab Viggen Custom Wings model

...

Recent Projects

...
<Hover over image to enlarge>

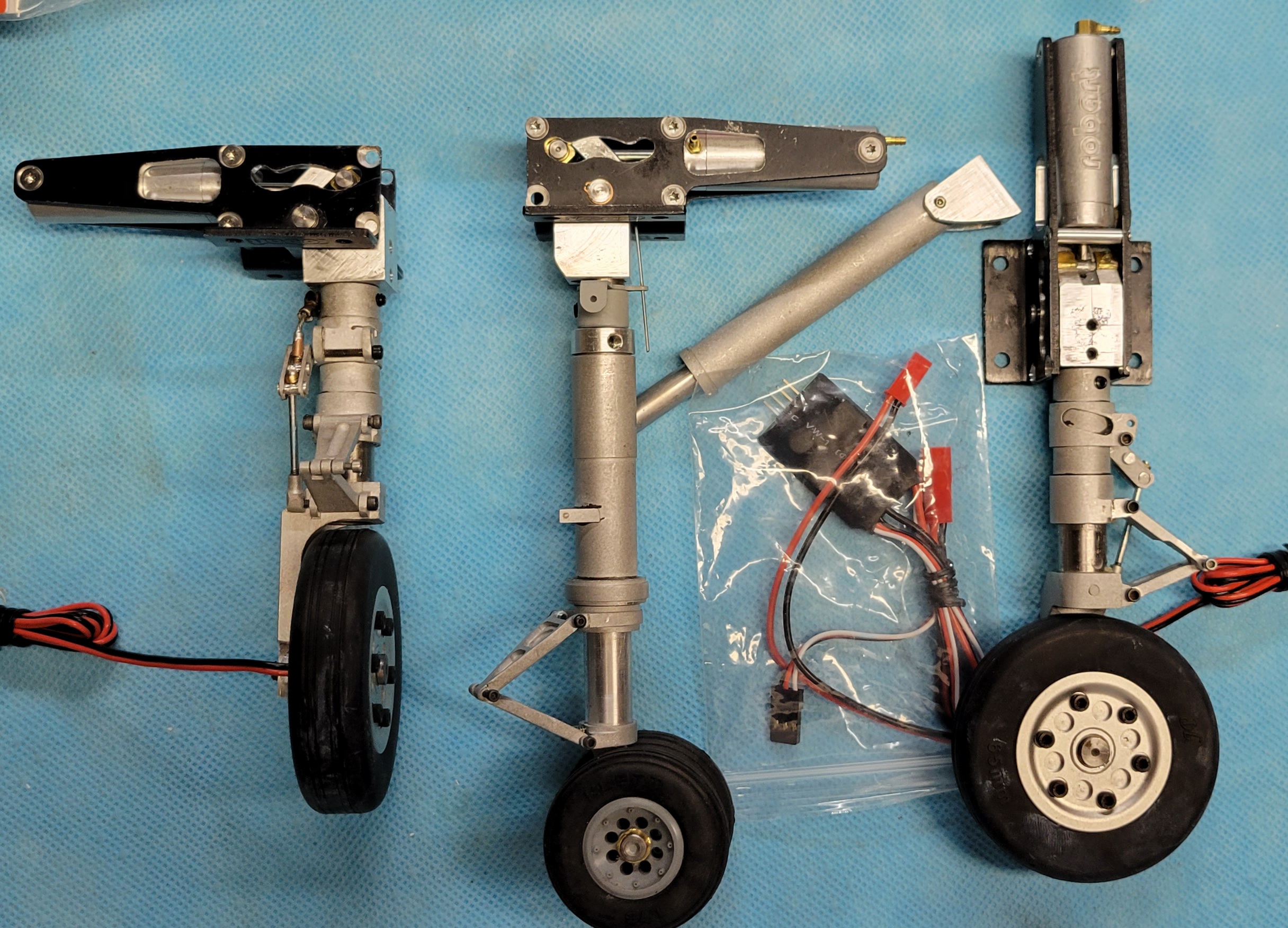

F4

  • 3 gear set
  • Pneumatic retracts
  • JP Hobby wheels with brakes
  • For a modeler in California
...
...
<Hover over image to enlarge>

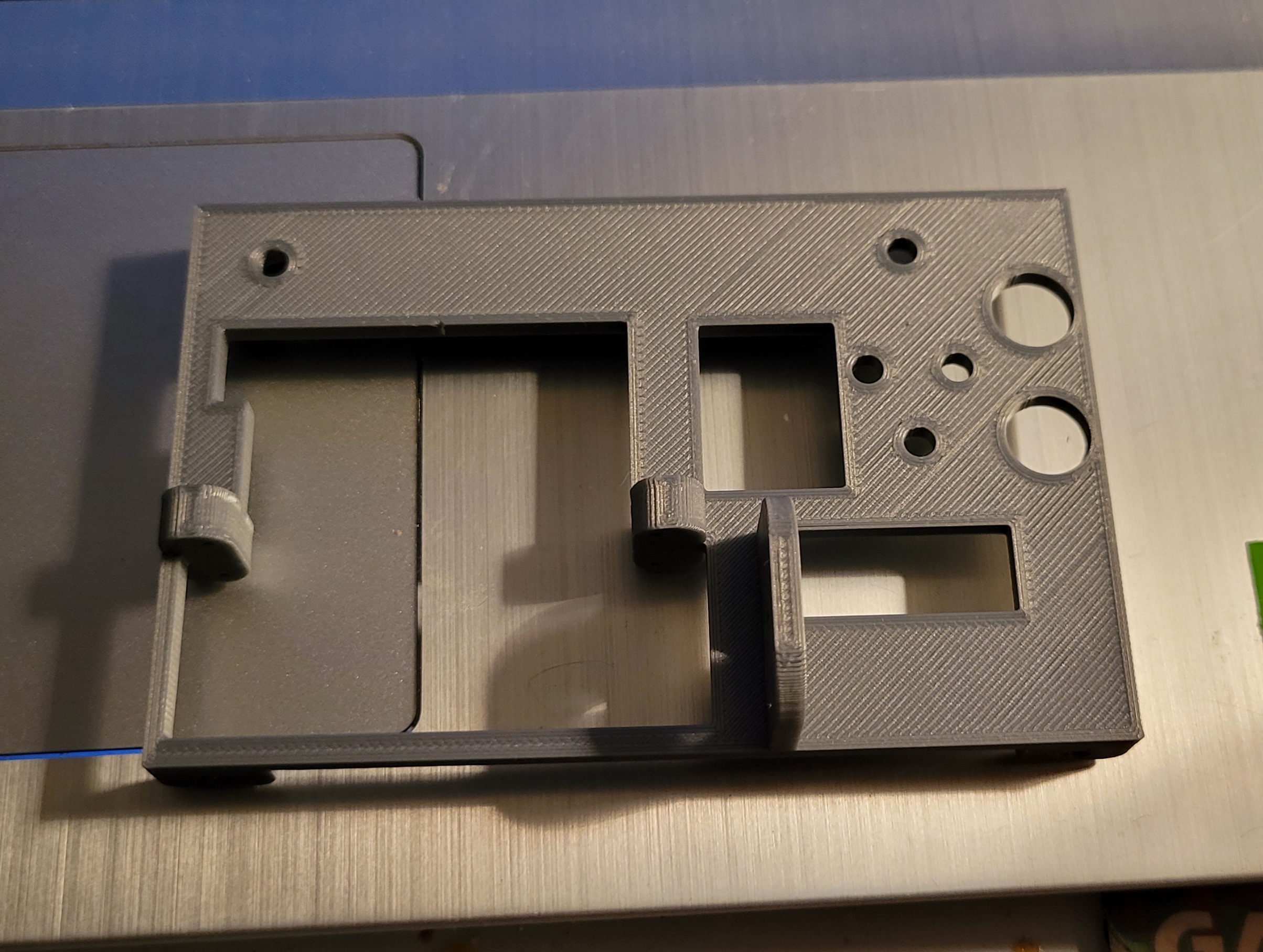

Robart Retract

  • Mounting manifold for Robart retract pneumatic system
  • 3D printed
...
...
<Hover over image to enlarge>

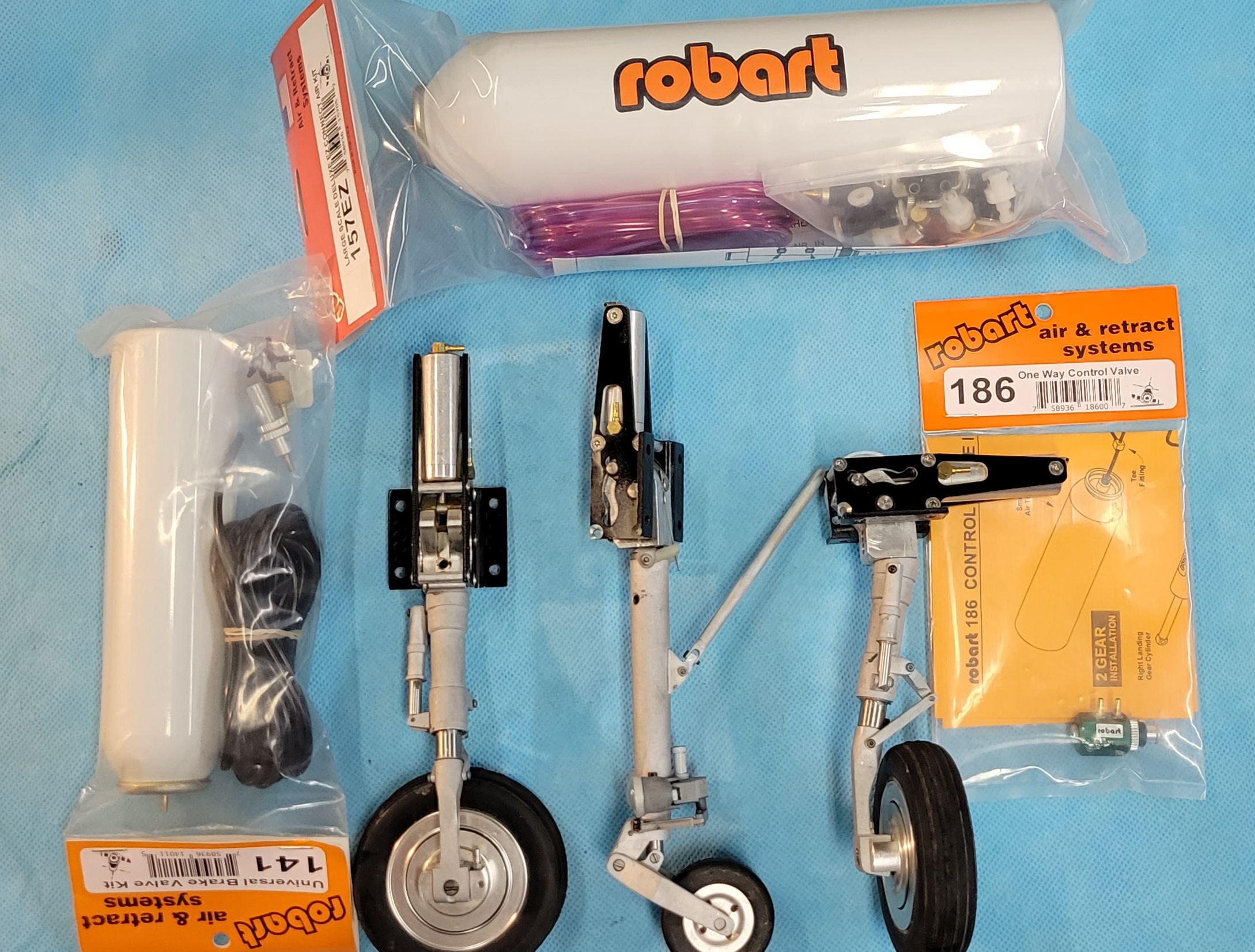

JHH Mirage

  • 3 gear set
  • For a modeler in California
  • He is now working on the Mirage
  • Also, has worked on the JHH B-58,A7 and F4
...

Saab Viggen Custom Wings Build


Customers

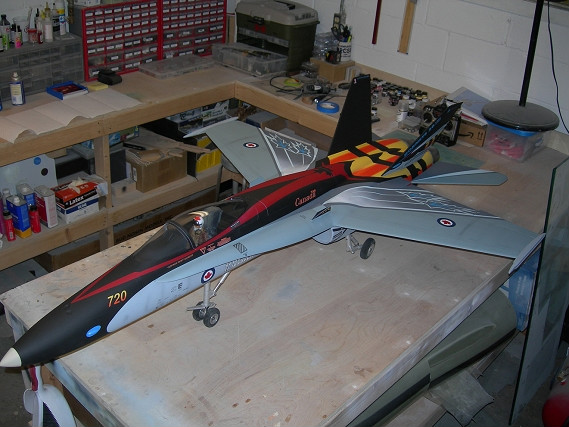

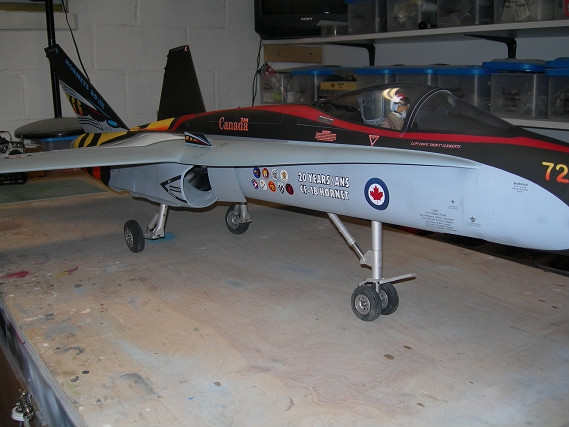

F18

Sean McHale

<Hover over image to enlarge>
...
<Hover over image to enlarge>

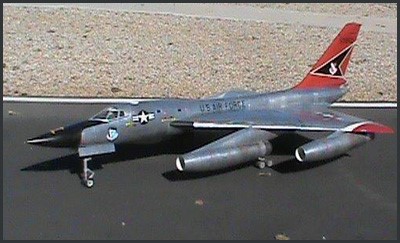

B58 Hustler

Dorian Anderson of JHH

...
...
<Hover over image to enlarge>

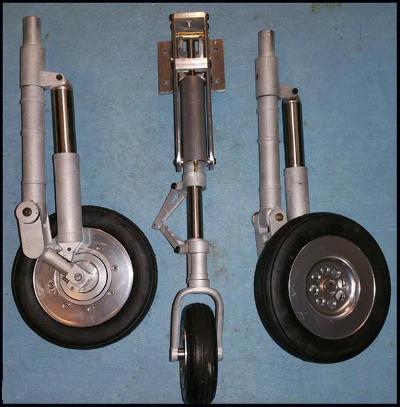

F4-J Fury

Dorian Anderson of JHH

...
...
<Hover over image to enlarge>

F9-F Strut Testing

Roy Baty jr

...
...
<Hover over image to enlarge>

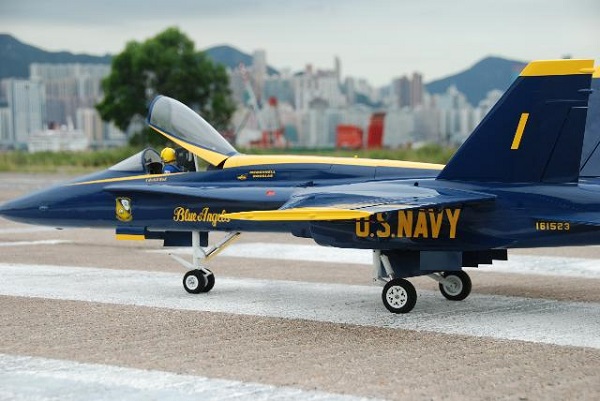

F18

Tom Longbottom

...
...
<Hover over image to enlarge>

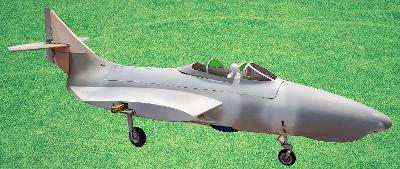

F9F Cougar JHH

Sam Wright

...
<Hover over image to enlarge>

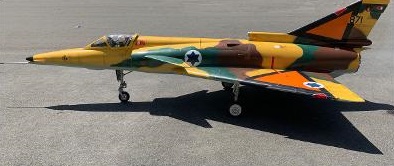

Mirage

Tonie Campbell Oly

...

Contact US

  • RcCrafters

  • Address: 4646 Ashbury Pk.
  • City: North Olmsted
  • State/Zip: OH 44070
  • Phone: 440-263-9807
  • Email: rccrafters@aol.com
